“CREATED BY AUDIOPHILES WITH AN EXTRAORDINARY PASSION FOR HIGH-FIDELITY”
Car Audio Magazine
Technical Specifications:
Woofer Size: 6.5”, midrange Size 4", Tweeter Size 2"
RMS Power handling:500 Watts per channel (150W - 500W RMS per channel is recommended)
Sensitivity: 98 db @ 2.83V
Frequency Response:34-40,000 hz
Motor Type: Internal NEO Magnet (TWEETER, MIDRANGE and WOOFER)
Voice Coil Type: Ultra-High Temp Dual 2 ohm Coils
SYSTEM Impedance: 1 ohm nominal
1x ELS-1000.2 set to : Band Pass 50Hz-1200Hz for 6.5" woofers
1x ELS-1000.2 set to : High Pass @ 1200Hz for the midrange and tweeter being crossed over with the included 2 way crossover
ULTRA-PERFORMANCE 1 OHM HYBRID 3WAY SYSTEM:
This Front Stage component kit is an Ultra-Performance 1 ohm 6.5" Component kit matched with 2 ELS-1000.2 1 ohm amplifiers.
HYBRID CARBON FIBER CONE:
This cone is made of Lightweight rigid fiber and oversized real Carbon fiber cap to withstand more than 1000 Watts of peak music power.
The Lightweight Carbon Fiber Cone hybrid increases rigidity, efficiency and clarity at all levels which ultimately means more, undistorted sound.

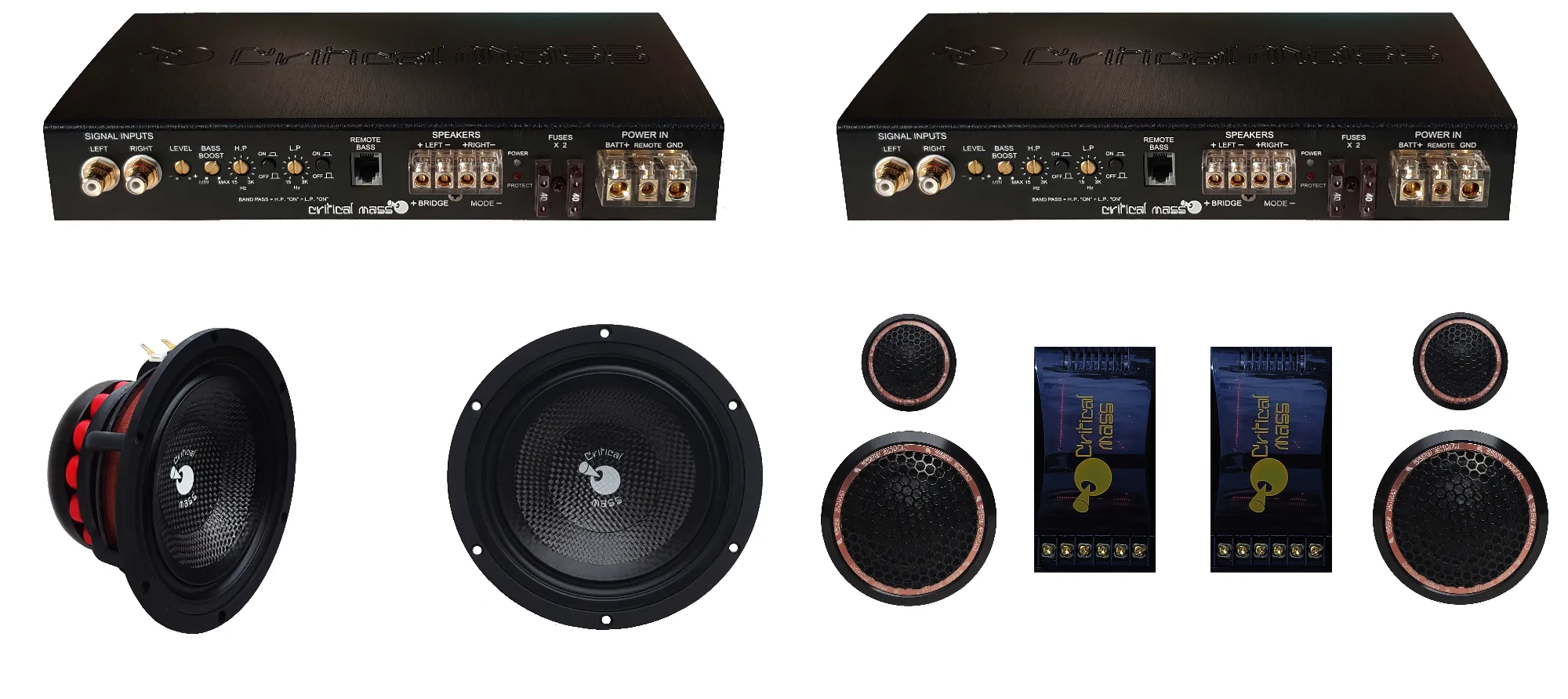

Included in this Active hybrid 3way 1 ohm kit:
- Two ELS-1000.2 (one pre set in BP for woofers) other set in HP for Mid-Tweeter w 24db/oct crossover
- Two 1ohm 6.5" Woofers
- Two 4" Midrange
- Two 2" Tweeters
- Two 24db/oct Crossover networks for mid and tweeter only (2way)
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE
